Model : IP-1EB2FC-US
2mp-small-ir-dome-dimension

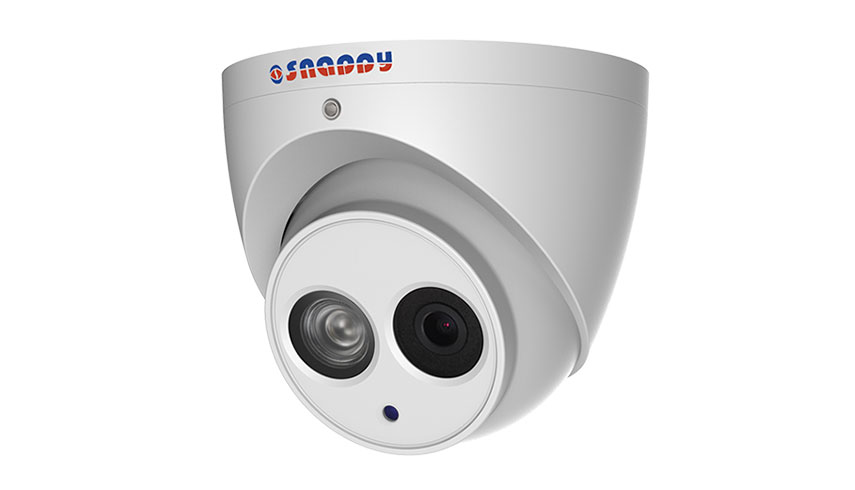

Small IR Dome 2 Megapixel Full HD Network Camera

  • 1/2.7” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 25/30fps@1080P(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Built-in Mic (only for -US)
  • Max. IR LEDs Length 50m
  • Micro SD memory (only for -US), IP67, PoE
TECHNICAL SPECIFICATION
ACCESSORIES
Model IP-1EB2FC-US
Camera
Image Sensor1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length50m
Day/Night Auto(ICR)/Color/B/W
Backlight CompensationBLC / HLC / WDR 120B
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain ControlAuto/Manual
Noise Reduction 3D
Privacy MaskingUp to 4 areas
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F2.0(F2.0)
Focus Control Manual
Angle Of View H:91°(63°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
CompressionH.264/H.264H/H.264B/MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate :
Main Stream 1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1~25/30fps)
Third Stream720P(1~13/4fps)
Bit Rate H.264: 32Kbps~ 32Mbps
Corridor Mode Support
Audio
CompressionG.711a/ G.711u/ AAC(only for -US)
Interface Built-in Mic(only for -US)
Smart Function
Smart DetectionTripwire,Intrusion,Scene change,Missing/Abandoned,Audio detect,Face detect
Network
EthernetRJ-45 (10/100Base-T)
Security Password, IP Address Filtering, User Privileges
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, RTCP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, PSS/web Client, ARP, 802.1x
Compatibility ONVIF, CGI,PSIA
Max. User Access20 Users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD Max 128GB(only for -US)
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power SupplyDC12V, PoE (802.3af)
Power Consumption Max 4W
Working Environment-30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance Yes
Dimensions Φ106mm×94mm
Weight 0.47kg(0.65kg with package)
Dimension
2mp-small-ir-dome-dimension
Pole mount bracket
Pole Mount Bracket
Wall mount bracket
Wall Mount bracket
Junction Box
Junction Box
